Control Cable

Control cable is intended for fixed connection to electric units, apparatus and clips of electrical distributing units. Control cable is used for signal units, control units, relay protection e.t.c.

Nominal voltage A.C. up to 100 Hz, [V] 660
Nominal voltage D.C., [V] 1000
Test voltage A.C. 50 Hz, 5 minutes, [V] 2500
Max. operating temperature of conductor, [°C] +70
Temperature of environment, [°C] -50/+50
Humidity at 35°C, [%] 98
Installation at temperature, not less than, [°C]:
- for non-armoured cables -15
- for armoured cables -7
Length of cable, not less, [m] 150
Lifetime of cables, not less than, [year]:
- in the open air and soil 15
- in premises, conduit and ducts 25
Guarantee period, [year] 3

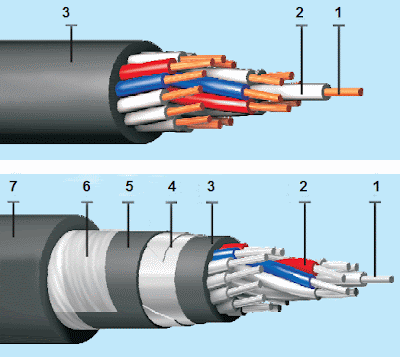

Control cable КВВГ:
1. Conductor. 2. Insulation. 3. Outer sheath.
Control cable АКВБбШв:
1. Conductor. 2. Insulation. 3. Bedding. 4. Armour. 5. Bitumen. 6. PETF tape. 7. Outer sheath.
  •  Browse the categories on the page to search the necessary control cable and wire.
  • Visit our capabilities page to learn more about materials offerings.
Application:

Cables are used for connection to electric units, apparatus, clamps, switch gears with altemating voltage up to 660 V, frequency up to 100 Hz or direct voltage up to 1000 V.

Cables should be installed in fixed electric networks. If there is danger of mechanical damage during operation it is recommended to use armored cables.

For installation outdoors, in premises, ducts, channels, in aggressive environment, if there is no mechanical influence to cable. Do not distribute burning in case of single laying (IEC 60332-1) (control cables КВВГ, АКВВГ).

The same as control cable АКВВГ, but do not distribute burning in case of laying in bundles (IEC 60332-3, category A) (АКВВГнг).

The same as control cable КВВГ, but do not distribute burning in case of laying in bundles (IEC 60332-3, category A). Low smoke at burning (IEC 61034-1, 2) (КВВГнг-LS).

For network which require protection of electric circuits from the influence of outer electric fields. Do not distribute burning in case of single laying (IEC 60332-1) (КВВГЭ).

The same as control cable АКВВГЭ, but do not distribute burning in case of laying in bundles (IEC 60332-3, category A) (АКВВГЭнг).

The same as for similar to control cable КВВГЭ, but do not distribute burning in case of laying in bundles (IEC 60332-3, A categories). Low smoke at burning (IEC 61034-1, 2) (КВВГЭнг-LS).

For installation outdoors, in premises, ducts, channels, in aggressive environment, if there is a danger of mechanical influence to cable. If cable is not subject to considerable tensile strength. Do not distribute burning in case of single laying (IEC 60332-1) - exclud cable types АКВВБ, КВВБ (АКВВБ, КВВБ).

For installation in soil (trenches), in aggressive environment, in areas subject to stray currents influence, if cable is not subject to tensile efforts (КРВБ).

For installation outdoors, in premises, ducts, channels, in soil (trenches), in aggressive environment, in areas subject to stray currents influence, if the cable is not subject to tensile efforts and if there is a risk of mechanical influence to cable. Do not distribute burning in case of single laying (IEC 60332-1) (АКВБбШв, КВБбШв).

The same as control cable АКВБбШв, but if the cable is subject to tensile efforts (poured, boggy, distending and permafrost soils, vertical lines) (КВПбШв).

The same as control cable КВБбШв. Do not distribute burning in case of laying in bundles (IEC 60332-3, A and B categories) (КВБбШнг).
